# Loring S

## 1. Network Configuration

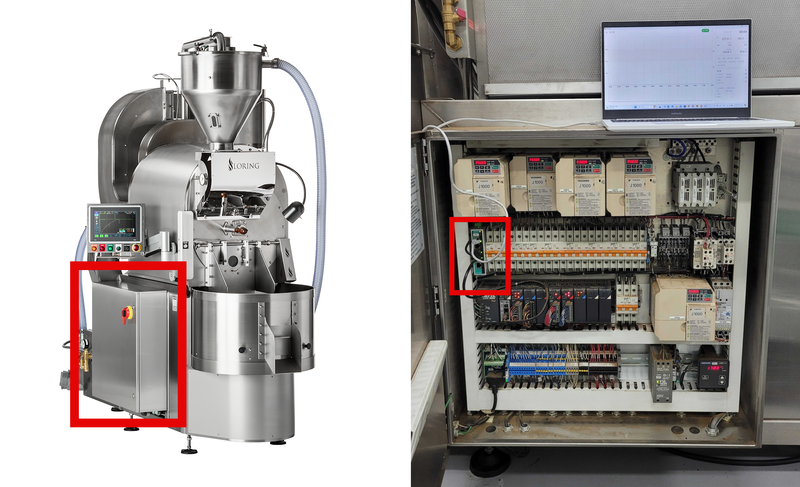

Connect the Loring roaster and the computer using an Ethernet cable.

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2Fc8SDWayYGPsB20wlVf9C%2Fimage.png?alt=media&#x26;token=399019c3-8c75-4fdb-9b55-9b37e79f0367" alt=""><figcaption></figcaption></figure>

## 2. Setting up the network

{% tabs %}
{% tab title="Windows" %}
For different versions of Windows, follow the steps below to adjust your network settings:

* Window 7, 8: Start -> Control Panel -> Network and Sharing Center → Change adapter settings (left sidebar)

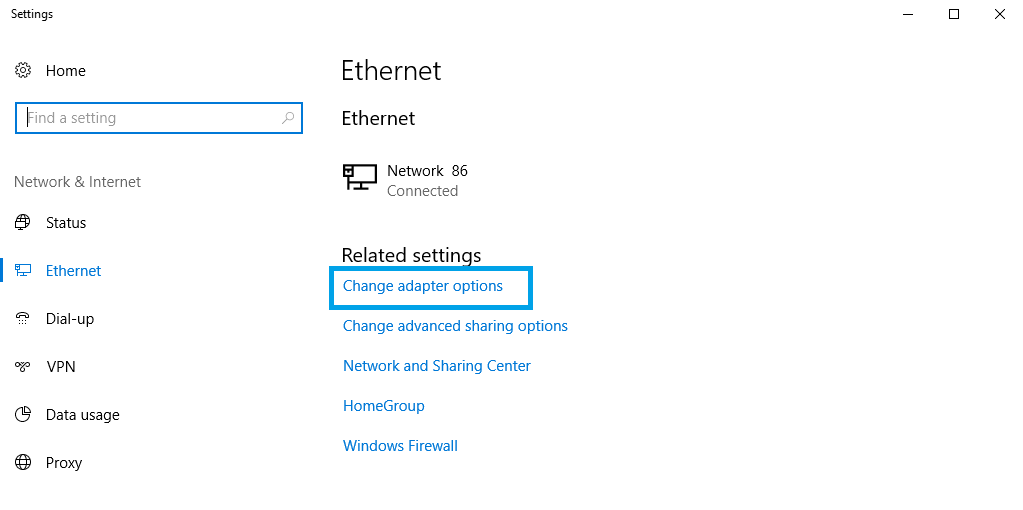

* Window 10: Start -> Settings icon -> Network & Internet -> Change adapter options (left sidebar)
* Window 11: Control Panel -> View network status and tasks under Network and Internet -> Change adapter settings (left sidebar)

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FkvtmDnWnSqolIGUzWoZb%2Fimage.png?alt=media&#x26;token=3b6e1ea6-b1a2-490b-ad4e-2cb0d936a217" alt=""><figcaption></figcaption></figure>

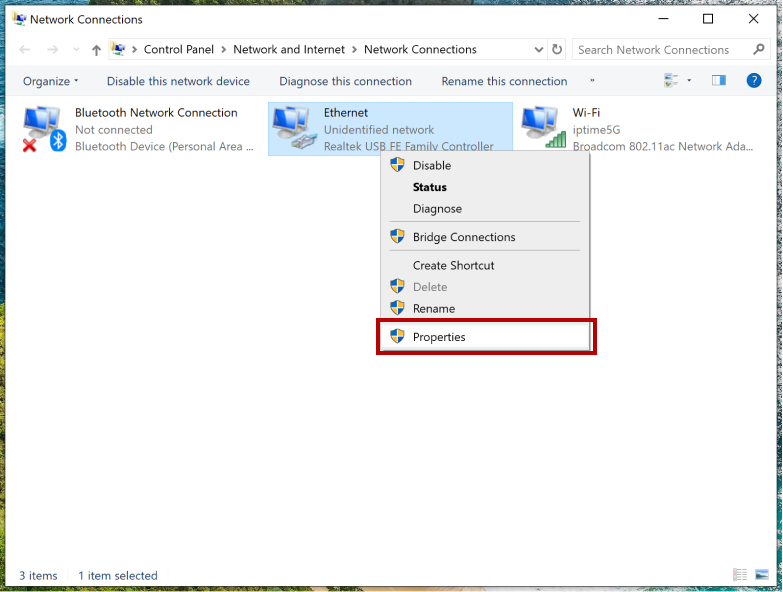

1. Right-click the icon labeled "Local Area Connection" or "Ethernet" (may be displayed as 'Not connected' depending on the device), then select Properties from the menu.

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FmE0zRTiIygdYQkccY4Ju%2Fwindows-network1.png?alt=media&#x26;token=9a918c50-747c-47e5-ba14-8a63c5abcc96" alt=""><figcaption></figcaption></figure>

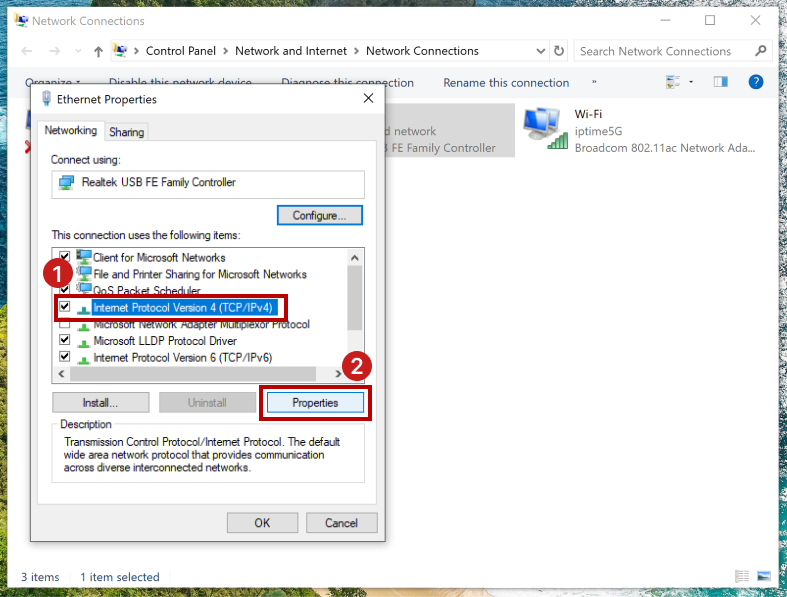

1. In the Local Area Connection Properties window, select Internet Protocol Version 4 (TCP/IPv4) and click the Properties button.

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FyOUeMZUQSrVGp2IphVQa%2Fwindows-network2.png?alt=media&#x26;token=5aa03d68-8e88-4150-9fcd-c25b6e61f3c1" alt=""><figcaption></figcaption></figure>

1. A new window will appear where you can input the IP addresses for the roaster.\
   Enter the required IP addresses as specified by your roaster's network setup.&#x20;

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2F5dHC9X1KiUlz5DeVM8w0%2Fwindows-network3.png?alt=media&#x26;token=127ed6ea-65d2-49d2-8098-f38c6f98dbcc" alt=""><figcaption></figcaption></figure>
{% endtab %}

{% tab title="Mac (latest version)" %}

1. Click the Apple icon in the top-left corner and open the System Preferences. Go to the 'Network' tab on the left.&#x20;
2. In the Network tab, click the 'Service Order' button in the bottom-right corner.

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FVdcNIO9PkHOwR9MKvIw7%2FScreenshot%202023-12-21%20at%203.25.36%E2%80%AFPM.png?alt=media&#x26;token=30d4441d-759a-4b4e-b2b0-44277053de14" alt=""><figcaption></figcaption></figure>

3. Drag Wi-Fi to the top of the list and click 'OK'.

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FXR4oW0BQVQRyHrUBV3lJ%2FScreenshot%202023-12-21%20at%203.25.50%E2%80%AFPM.png?alt=media&#x26;token=933f5bda-c7ca-499d-b026-772feea62c56" alt=""><figcaption></figcaption></figure>

4. Select the 'USB 10/100 LAN' item and click 'Advanced'.&#x20;
5. Click the 'TCP/IP' tab on the left and change the IPv4 configuration to 'Manually'.

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FK3Yixei81QWsIw0Khsiw%2FFrame%201.png?alt=media&#x26;token=d5b28bbb-c089-4400-a669-f5f680ed7009" alt=""><figcaption></figcaption></figure>

6. Fill in the IP address and subnet mask according to the model you are connecting to from the table below, and click 'OK'.&#x20;
   {% endtab %}

{% tab title="Mac (previous version)" %}

1. Click the Apple icon in the top-left corner and open the System Preferences. Go to the 'Network' tab on the left.&#x20;
2. In the Network tab, click the 'Service Order' button in the bottom-right corner.
3. Drag Wi-Fi to the top of the list and click 'OK'.
4. Select the LAN option on the left, and then choose "Manually" for IPv4 configuration.
5. Fill in the IP address, subnet mask, and routher (default gateway) according to the table for your model, and click 'Apply'.&#x20;
   {% endtab %}
   {% endtabs %}

| Name  | IP Address   | Subnet Mask   | Gateway |
| ------ | ------------ | ------------- | ------- |
| Loring | 192.168.1.42 | 255.255.255.0 | blank   |

### 3. Configuring Firescope

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FZjTZSyX572SY3Jez2QGr%2Fmachine1.png?alt=media&#x26;token=6644908e-a9c4-4174-993c-3d2465994e9b" alt=""><figcaption></figcaption></figure>

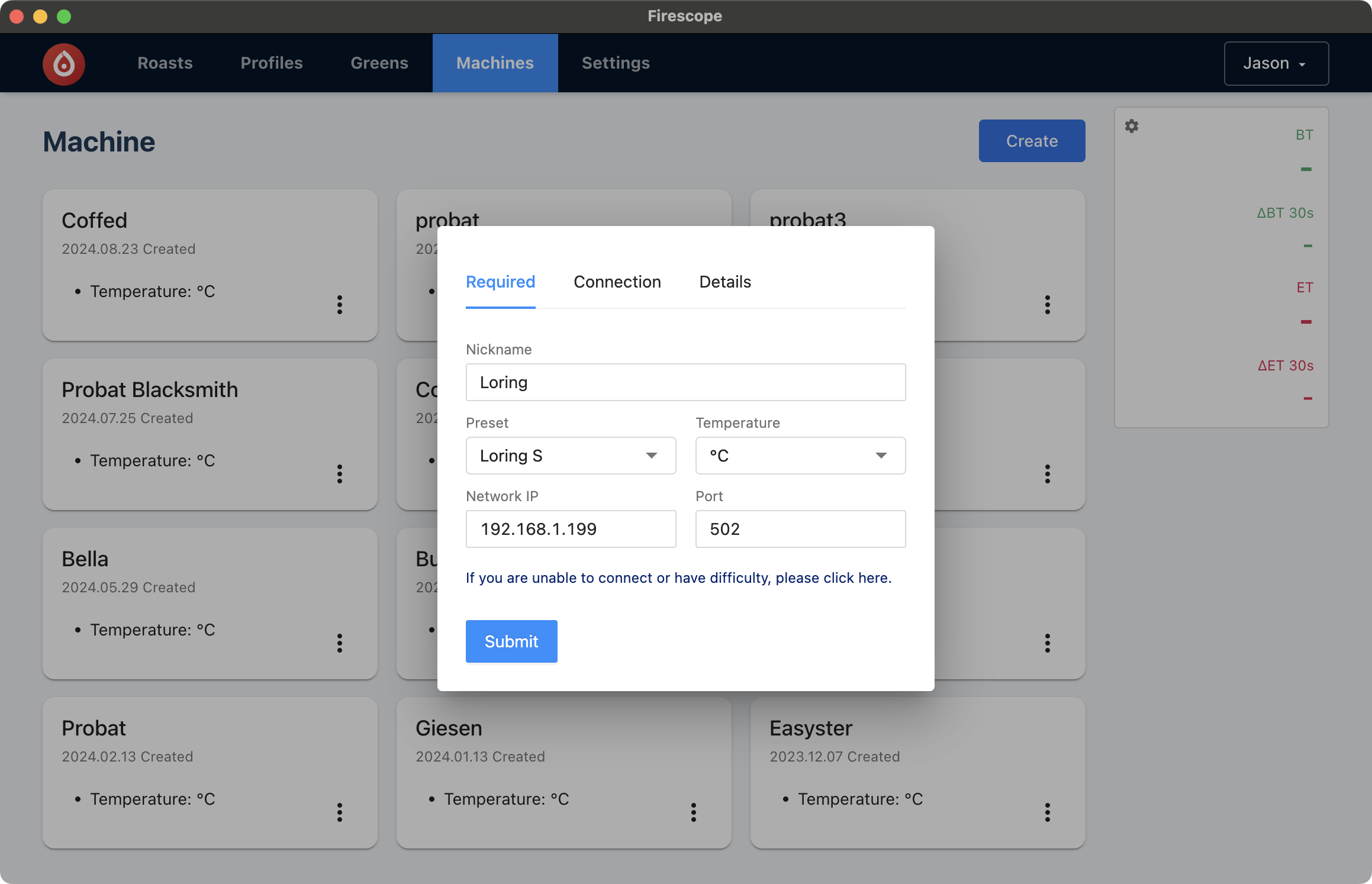

1. In Firescope, go to the 'Machine' menu and click the 'Create' button.
2. Enter a nickname to easily identify your roasting machine.
3. Select **`Loring S`** from the 'Preset' select box based on the instructions below.
4. For the network IP, enter the following: keep the port as 502 unless it is a special case.

* S15 Falcon, S35 Kestrel and S70 Peregrine: **192.168.1.199**
* S7 Nighthawk: **192.168.1.69**

<figure><img src="https://830458643-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwpJTxUWc9uFtXCim8Hgo%2Fuploads%2FrUVbqOmJ1AB6xjIRWge6%2FScreenshot%202024-08-31%20at%2011.15.06%E2%80%AFPM.png?alt=media&#x26;token=2d27a8a2-206a-41af-93b2-7626db7f639b" alt=""><figcaption></figcaption></figure>

4. If the setup is completed, you should start receiving temperature and sensor data within 10 seconds.&#x20;

{% hint style="info" %}
If you need help connecting Loring S, please contact Firescope for assistance.

-> [Talk to Firescope Team](https://www.firescope.io/proxy/english/chat)
{% endhint %}
